Solar cat drive and dog drive instructions:
1. A strong ultrasonic signal frightens the animal. Frighten the animal in the area of the animal’s unpleasant ultrasonic sound. The sound is activated when the animal enters the range. Therefore, animals cannot get used to the sound, and the repulsive force is stronger.
2. Strong flashes repel animals that are afraid of light. When the animal enters the range, the animal will be afraid.

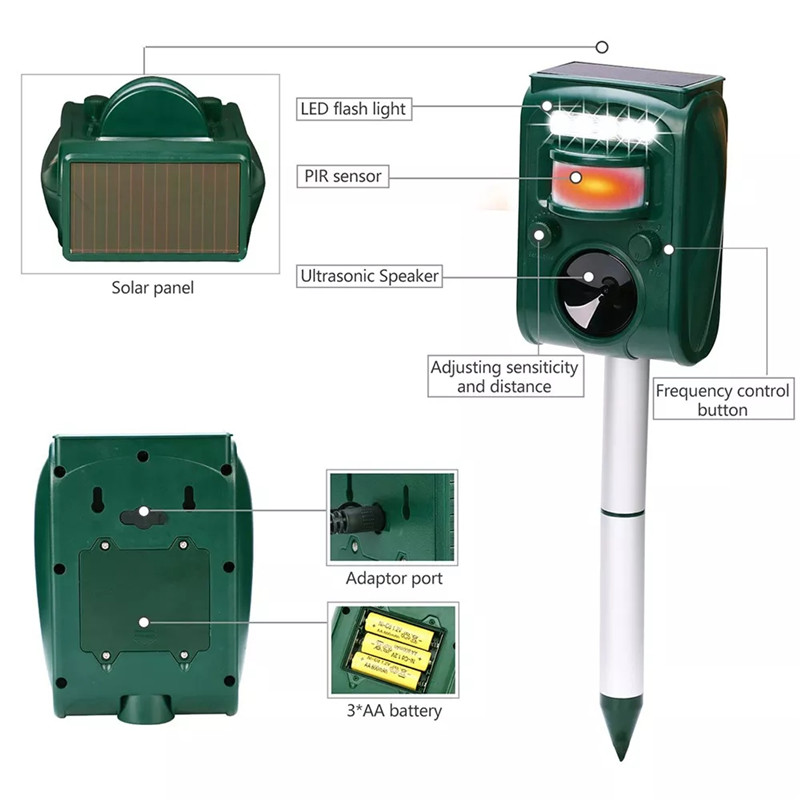

Button “SENS” (left): adjust the sensitivity and distance. By turning the knob clockwise, you increase the scope of protection. Repel the small animal and turn the knob to the right.

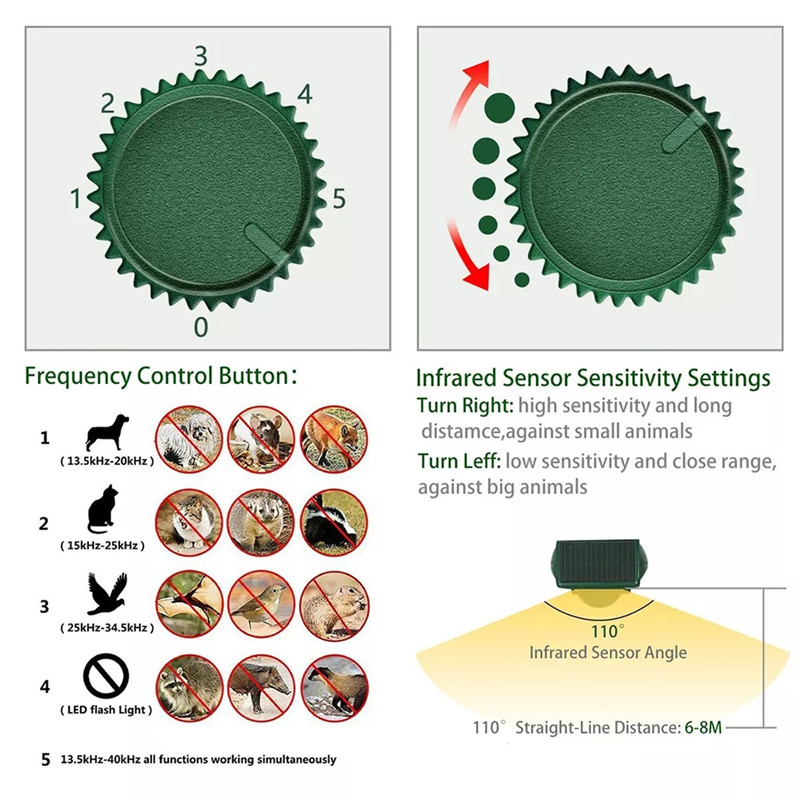

Location of button “Frequency”:
-1: 13.5kHz-17.5kHz to expel animals such as mice, mice, …
-2: 15.5kHz-19.5kHz to expel animals such as big dogs, foxes …
-3: 19.5kHz-23.5kHz to expel animals such as small dogs, cats, birds …
-4: Strong flashing
-5: All functions work, scan frequency from mode 1-mode 2-mode 3, then turn on strong flashing
Technical data:
Power supply: solar panel and 3 × AA battery
Effective distance: up to 8M (depending on weather and environment)

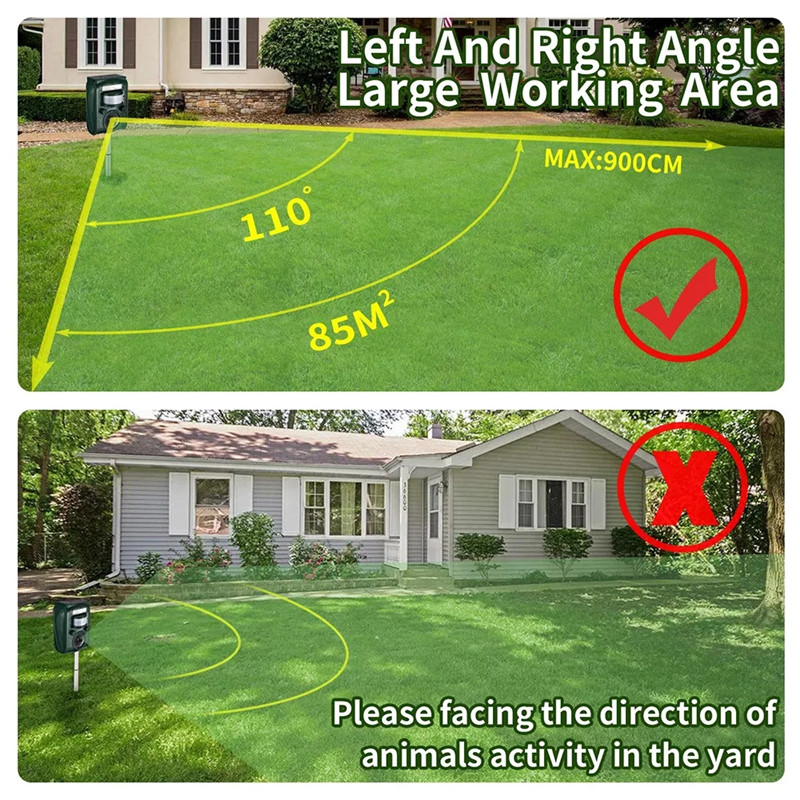

Detection angle: 110 ° horizontal (depending on the surrounding weather)
Waterproof rating: IPX4.
Certificate: CE & ROHS
